Obtain data from ENEDIS


In this article, you will find information about ENEDIS and how to send ENEDIS data to the Energy Management Platform:


ENEDIS is a digital solution that provides free, secure, and neutral access to every consumer to their electricity consumption data. It is a platform created by ENEDIS, a French company that operates as an electricity distribution network manager.


How to Register on ENEDIS?

To obtain data from ENEDIS, you generally need to follow these steps:

  1. Registration for Access:

    • Visit the ENEDIS website or portal.
    • Look for the section related to data access or services.
    • Sign up for an account or access their data services platform.
  2. Request Data:

    • Once you have access, you can request the specific data you need. This may include energy consumption data, network information, or other related data.
  3. Compliance with Legal Obligations:

    • Ensure that your data request complies with ENEDIS's legal obligations and privacy policies.
  4. Data Processing:

    • Once you have obtained the data, you can process and use it as needed, in compliance with current regulations.

How to Register an ENEDIS Gateway on the Platform?

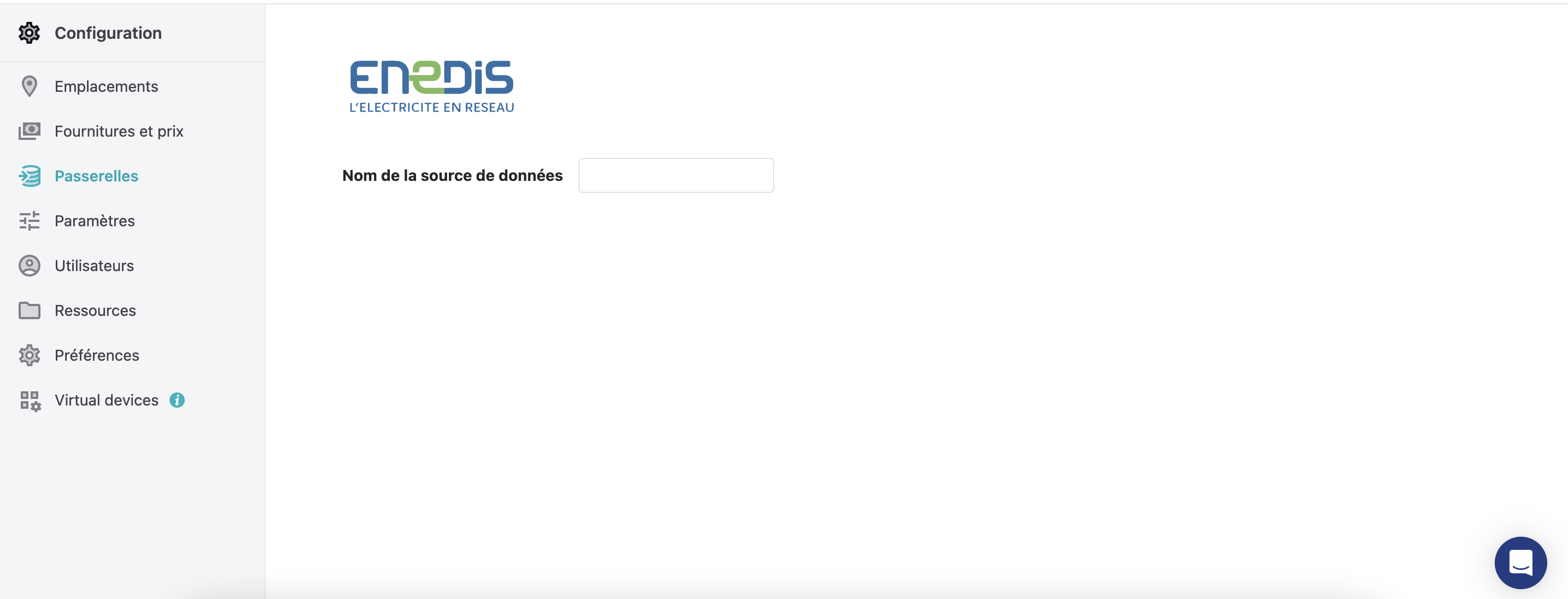

To do this, go to Configuration > Gateways. Choose the gateway named "Enedis."

Screenshot 2024-05-24 at 14.29.12.png

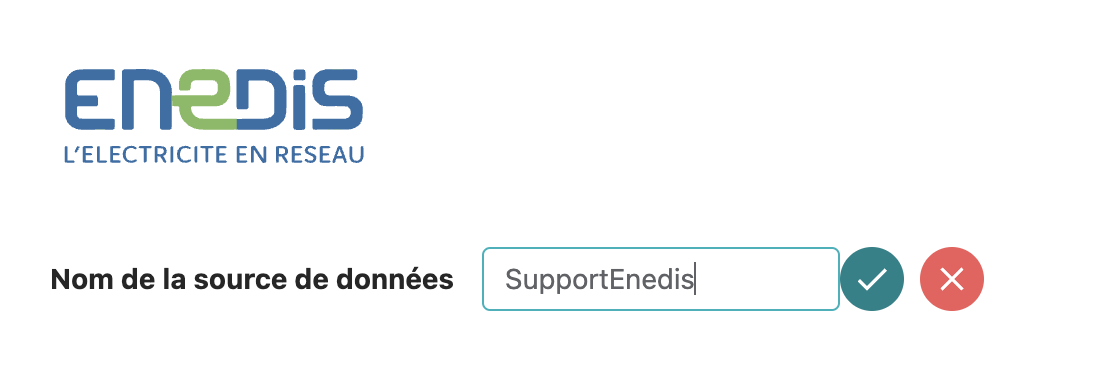

You will need to choose a unique name for your Gateway and accept.

Screenshot 2024-05-24 at 14.30.34.png

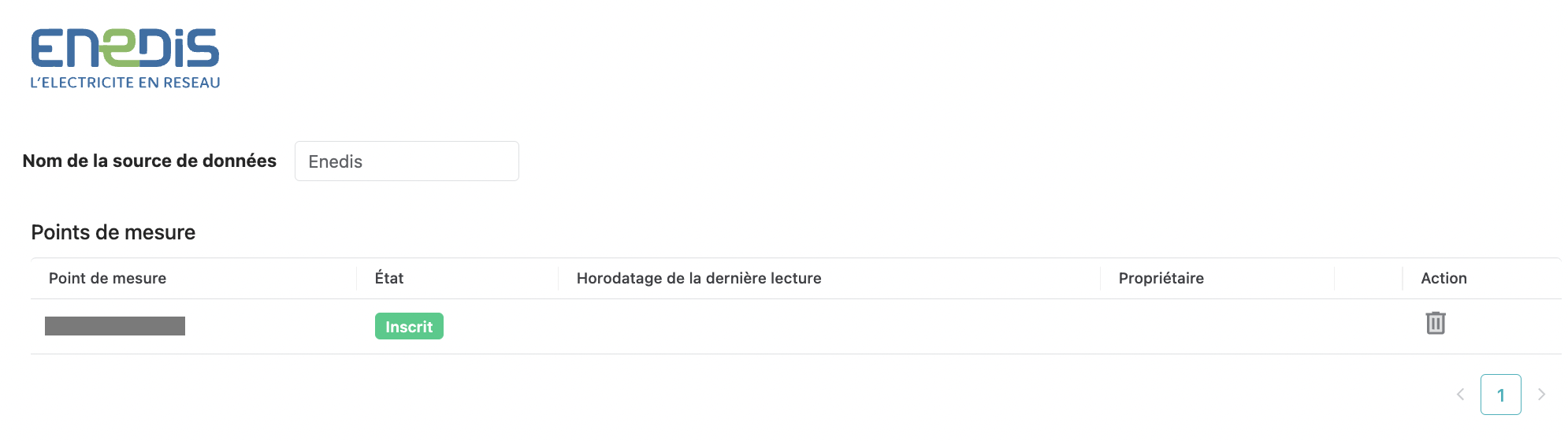

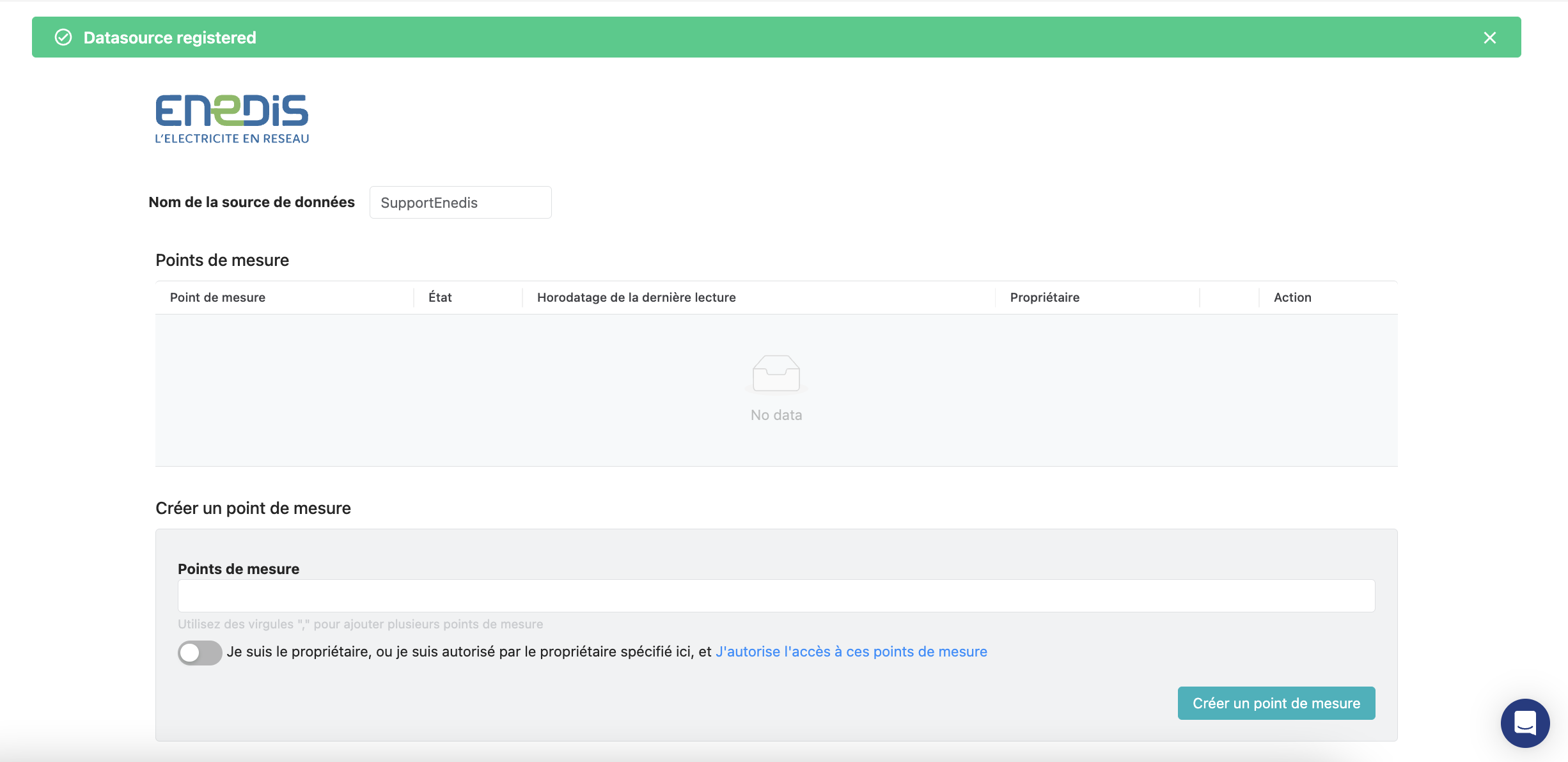

This will take you to the next screen, in your new Enedis Gateway, where you can view or add your measurement points.

Screenshot 2024-05-24 at 14.31.00.png


How to Add One or More PDLs in the Gateway?

To add a measurement point, simply enter your Point of Delivery (PDL) in the "Measurement Points" box. Be sure to check the option that asks for confirmation of the authorization to access this data under oath.

Click "Create a measurement point."

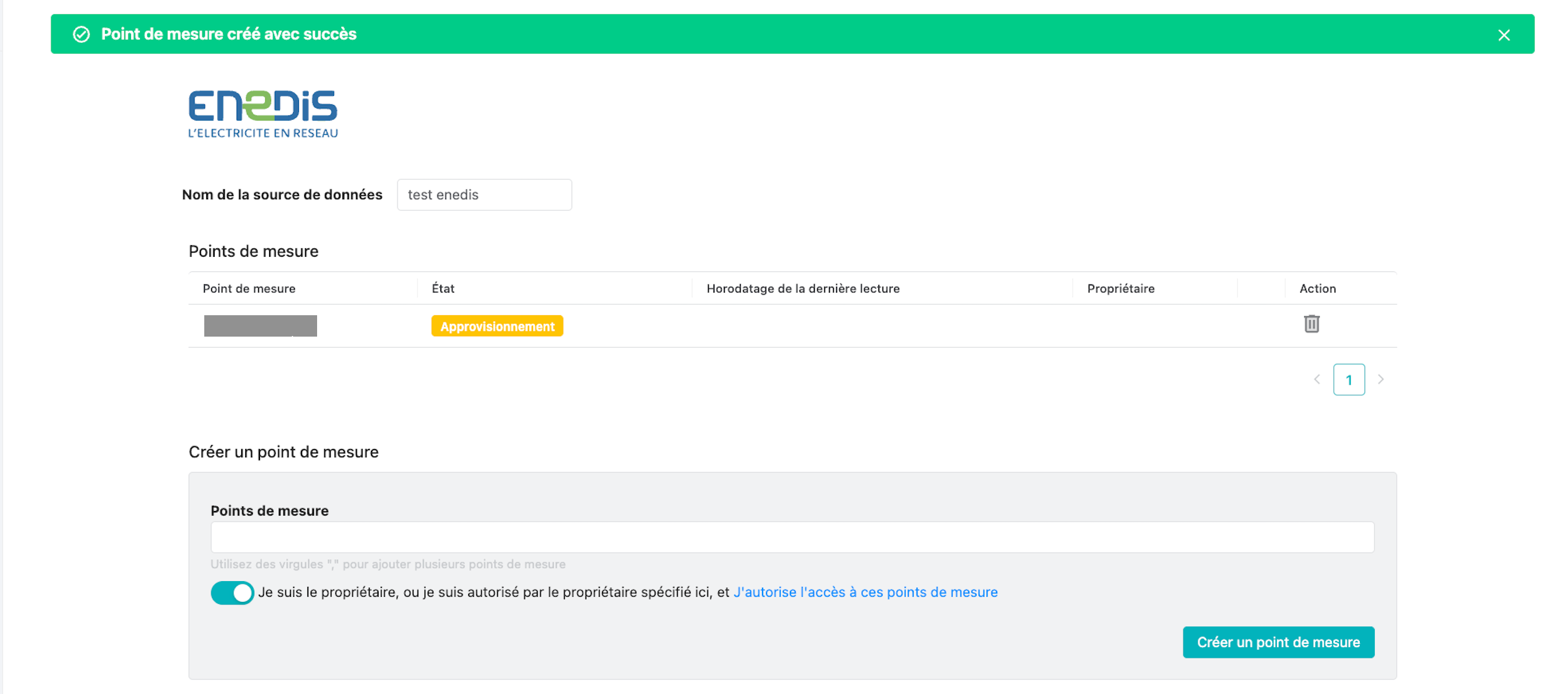

Screenshot 2024-05-24 at 14.31.00.png

You can create more than one measurement point in the same Enedis Gateway by adding different PDLs on the same screen.

Screenshot 2024-05-24 at 14.46.35.png


Available Data

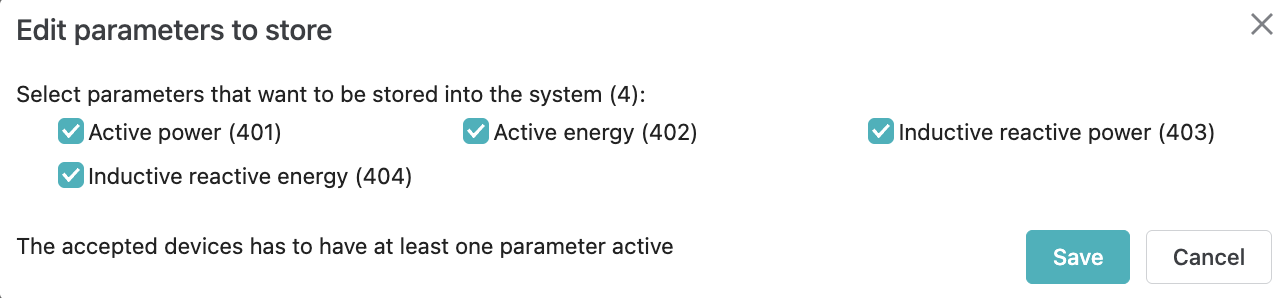

Once the data starts flowing to the Enedis Gateway, as with all other gateways, you will need to accept the data points and settings.

Screenshot 2024-06-19 at 17.49.52.png

The parameters available on your device depend on the data from your PDL. For example, this might include data on Active Energy and Produced Energy.

Screenshot 2024-06-19 at 17.48.13.png



  • The Enedis Gateway is an external application that must be installed: go to the application marketplace to install Enedis. Once done, you will find the Enedis Gateway at the end of the available gateways page, in the "external gateways" section.

  • Make sure that the user adding the PDL in the gateway has correctly configured their personal information: Enedis requires a first name and last name to accept the PDL usage authorization. If you have already done this, you can go to your profile (top right) and add your first and last name.

  • A PDL can only be added to one account.
