Widgets by reference device (dynamic by location)


In this article you will learn how to use the new widgets by reference device of the platform using the reference meters.


Introduction to the new widgets by reference device

After the launching of the New Dashboards, we can finally announce one of its most awaited features: dynamic widgets by reference device!

More about reference devices here.




Get ready to

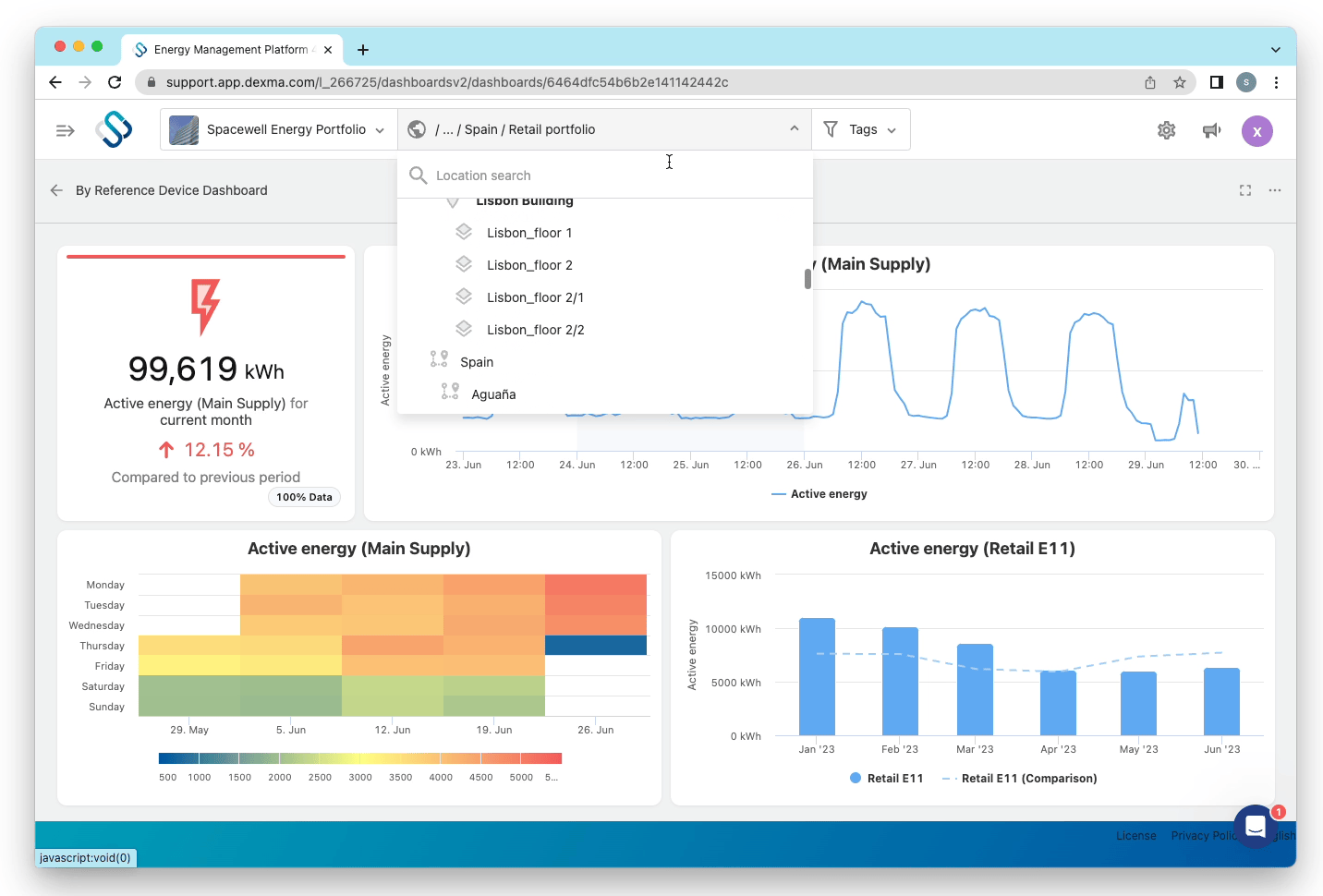

  • Add reference analysis widgets that vary according to the selected location.
  • Display data from devices, assigned as reference meters in each location, or aggregation of all of them based on the selected area.
  • Use KPI widgets, bar charts, line charts, stacked bars and pie charts that follow the location.
  • Share your dashboard with customised links based on the location you want to share.
  • Download a .csv file with the list of links associated to each location to manage the sharing in a simple and efficient way.


Configuration - Type of widgets available

To configure a dynamic widget, just select "Raw analysis - by reference device" as data source and select one of the available widgets to display the information.

The widgets available for analysis by reference device are as follows:

Access from an external link

To share a dashboard outside the Platform, you can use a Dashboard link. This link will be accessible from anywhere, without the need to log in to the platform and the information will be refreshed automatically every 15 minutes.

You can also share your dashboards within the platform, with a user profile.

Learn how to share your dashboards here.



Display of widgets by reference device according to the type of location

Currently, dynamic widgets by reference device can be displayed in all location types without distinction.

However, Zone or Global locations will aggregate up to a maximum of 20 devices at the moment. We are working on increasing this aggregation very soon.


Resolution available depending on the selected period

Depending on the period selected in each widget, the available resolutions will be as follows:

Period Available resolutions
Period of less than 3 months 15-min, 30-min, Hourly, Daily, Weekly, Monthly and Yearly
Period between 3 months and 1 year Daily, Weekly, Monthly and Yearly
Period longer than 1 year Monthly and Yearly
