In this article, you will learn how you can visualise and share the last value received for a chosen device.
Introduction
If you want to show realistic real time data you might be interested in this kind of information.
The Last Value allows you to know the more recent data that has been imported in the platform and from when is this data.
Requirements
You need a device with data, that is all.
Configuration

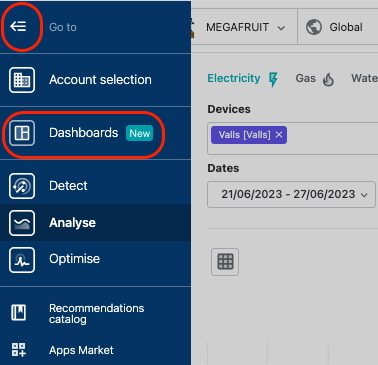

- Go to Dashboards
- Edit or create a Dashboard

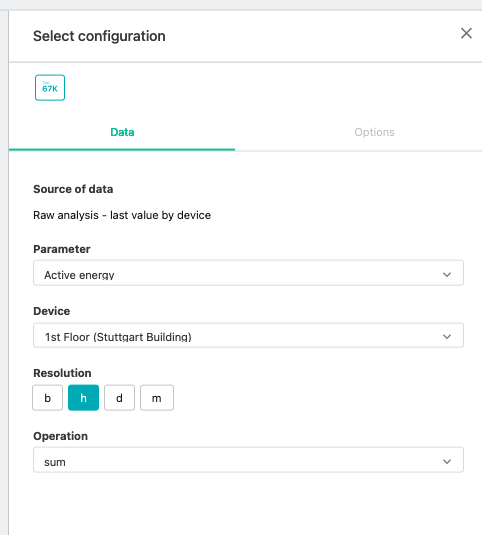

- Choose Raw data and Last Value by device
- Select the parameter from which you want to visualise the last value
- Select one of the devices that have that parameter
- Select a resolution. If you are inserting hourly data, you can still choose daily and the last value will be the aggregated value of the last day that there is data.
- Save
Available types of widgets

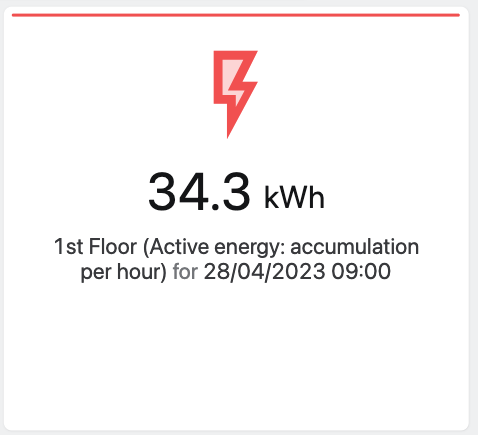

For this type of data there is just one Widget available: the KPI widget.
Click here if you can learn more about this widget and also about general modifications that you can apply to a widget such as changing the title.
