En este artículo aprenderás a utilizar la sección de los nuevos Dashboards.
- Introducción a los nuevos Dashboards
- Crea tu primer Dashboard
- Types of information that you can show in a Dashboard
- More Dashboard Customisation
-
Tips and Tricks
Introducción a los nuevos Dashboards ✨
Después de un largo periodo diseñando y desarrollando los Nuevos Dashboards, ¡por fin están disponibles en todas tus cuentas!
Para entender qué es un dashboard, echa un vistazo a nuestro artículo ¿Qué es un Dashboard?
Prepárate para

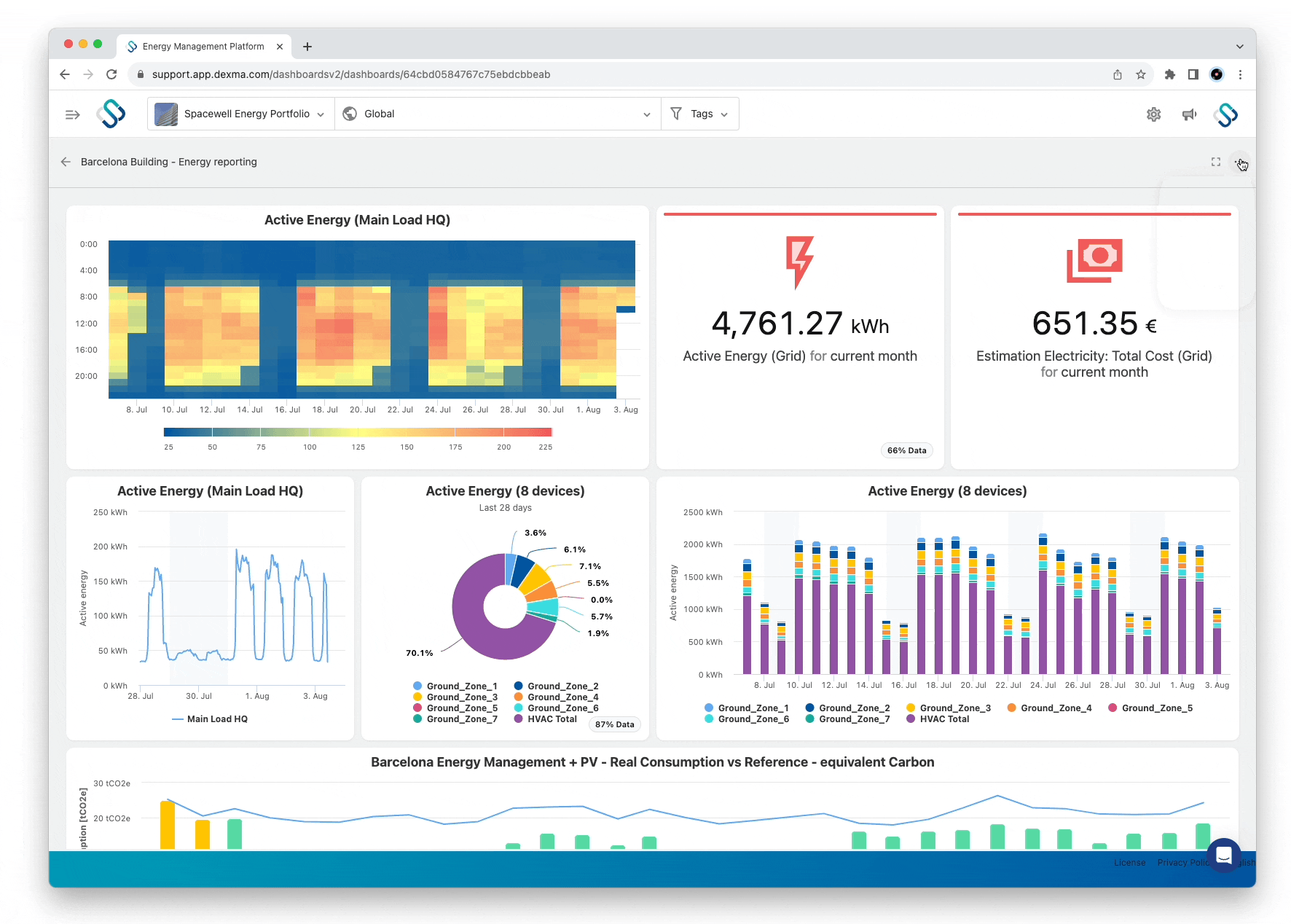

- Visualizar tus dashboards con una nueva y brillante interfaz
- Utilizar widgets de KPI, gráficos de barras, gráficos de líneas, barras apiladas y gráficos circulares.
- Cambiar el tamaño y reorganiza los widgets de un dashboard
- Compartir tu dashboard donde quieras con el link de dashboard
- Visualizar tus dashboards adaptados para tu teléfono móvil o tablet
Crea tu primer Dashboard
Para crear tu primer Dashboard, sigue los siguientes pasos:
- Entra en una de tus cuentas

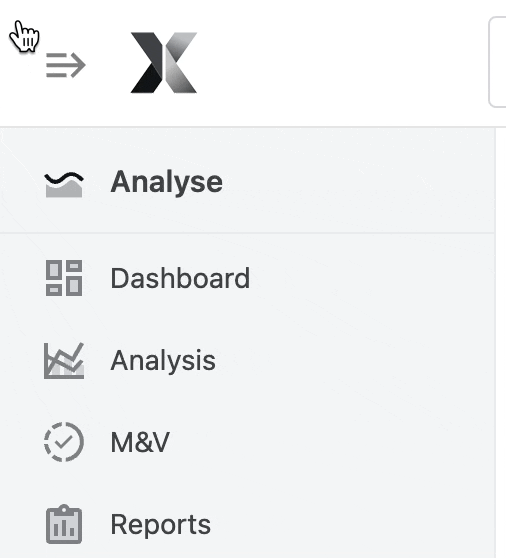

- Accede a la nueva sección de Dashboards, dirigiéndote al menú de Productos, en la esquina superior izquierda de la plataforma y haciendo click en Dashboards.

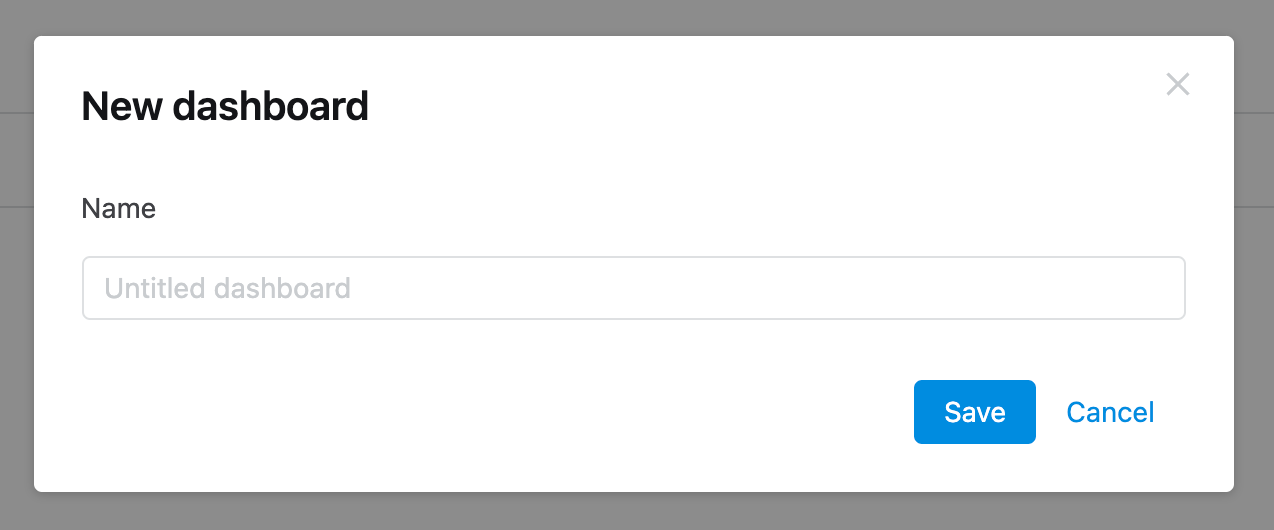

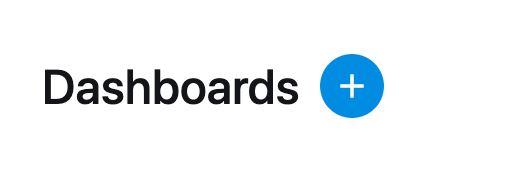

- En la nueva sección, haz click en el botón + para crear un nuevo Dashboard, y ponle un nombre (podrás editarlo más tarde)
.

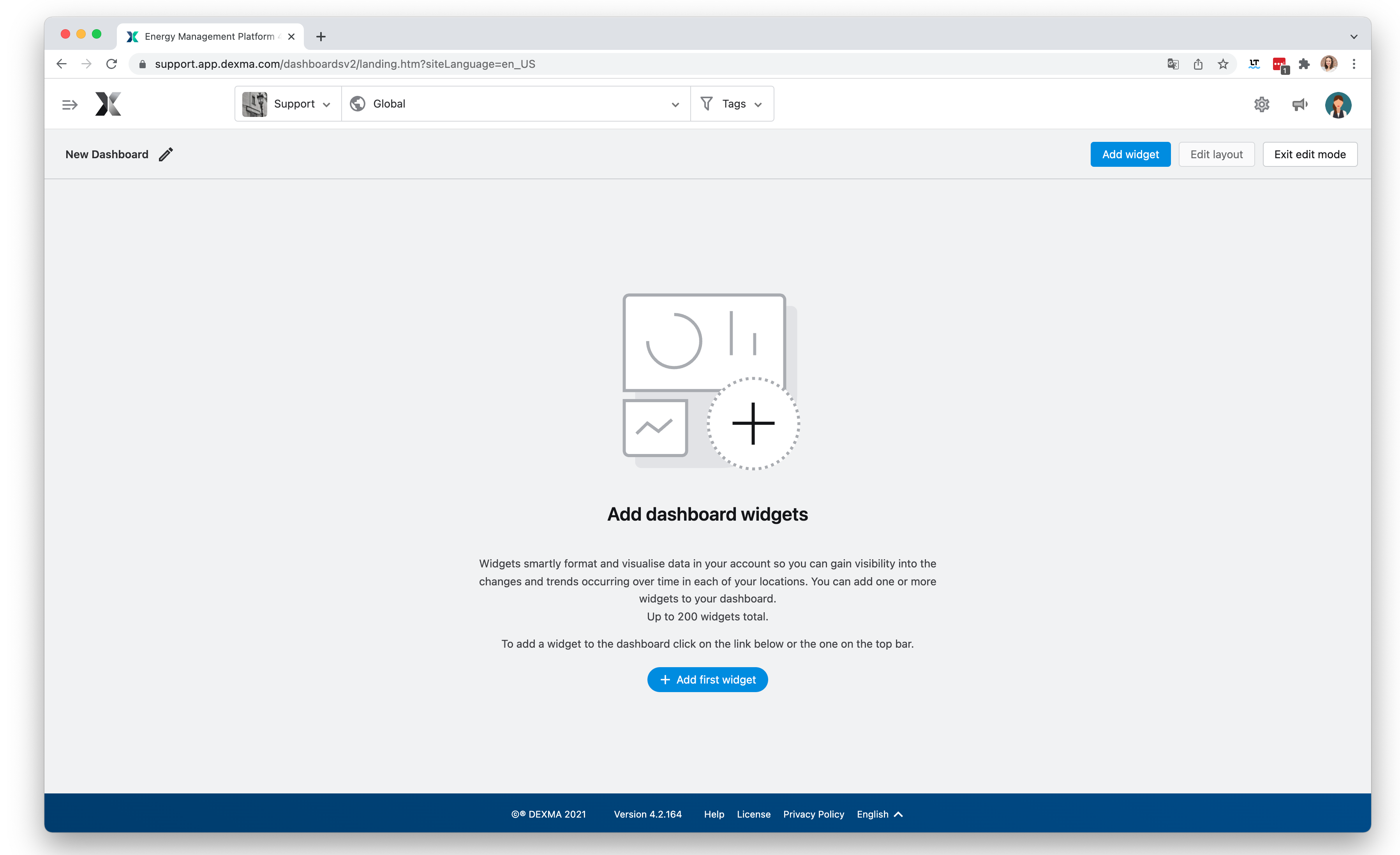

- En la pantalla de inicio, haz click en Añade tu primer widget para añadir un nuevo widget.
- Add all necessary widgets, change its layout and share your Dashboards! See below in the article to learn more about this.
Types of information that you can show in a Dashboard
Depending on the type of data that you want to visualise, you can choose between the ones in the following list. Check out our articles to learn more about them.
-
- Raw Analysis
- By parameter
- By reference device
- Last value by device
- Financials
- By device
- Consumption Cost
- Demand Load
- Mes pasado
- Projects
- Groups
- Microgrid - Solar
- Inputs
- Anomaly detection (coming soon)
- Detect (coming soon)
- Raw Analysis
- Depending on the types of data chosen, there are different widgets available. Learn more in this article.
-
More Dashboard Customisation
Shareability
Para compartir un dashboard con cualquiera, puedes utilizar un enlace de Dashboard. Este enlace será accesible desde cualquier lugar, sin necesidad de iniciar sesión en la plataforma y la información se refrescará de forma automática cada 15 minutos.
También puedes compartir tus dashboards dentro de la plataforma, con un perfil de usuarios.
Aprende a compartir tus dashboards aquí.
Nuevos Dashboards
Do you want to duplicate Dashboards, so you can replicate them and keep the same configuration?
Learn how to duplicate Dashboards in this article.
Layout design
Puedes modificar el tamaño de todos tus widgets y reordenar tu dashboard en función del tipo de pantalla (ordenador, tablet o móvil). Aprende cómo hacerlo con este artículo.
Modifica el diseño de tu dashboard
Do you want your account's user to see your favourite Dashboard when they enter the platform?
Learn how to pin a Dashboard with this article.
Star your Dashboards
Do you want your users to see their favourite Dashboards top-listed in your dashboard page?
Learn how to star your Dashboards with this article.
Custom your widgets
In this article, you will learn what can you change in your widgets and how.
Tips and Tricks
En los nuevos Dashboards hay varias opciones que puedes utilizar para personalizar tu vista.
Add several devices at once
This feature eases the selection of several devices (up to 20 devices) in the widget in one go, allowing users to filter by a string of text and hit the button: Select the x-x of "All items".
Note: You can also use this character trick "*" in the Consumption Feature to visualise all your devices in one click.
Creación de widgets a partir de grupos
Si creas un widget utilizando datos de un grupo, ten en cuenta que sólo estarán disponibles los siguientes periodos:
- Mes actual
- Last month
- Año hasta hoy
- Año anterior
