In this article you are going to learn about IntelliSense xserver.iot.200 :


What is an IntelliSense xserver.iot.200?

Case Study: Robust Hardware, Application-Focused Software and AI Deliver  Energy Savings for Smart Buildings - Sfera Labs


The IntelliSense xserver.iot.200 is a gateway that can easily transfer data from field devices to Cloud and SQL server applications. Field devices include meters, sensors, PLCs and other devices that communicate using the REST API and Modbus Protocol.

It communicates with the platform through HTTP protocol.


NOTE: see the documents attached at the end of the article for more information.


How to add an IntelliSense xserver.iot.200 in the platform

The IntelliSense xserver.iot.200 is integrated with the Platform, so to communicate the gateway with the platform is easy and quick.

To start receiving data you just have to follow the next steps:

  1. Login to the EMS with your user and password.

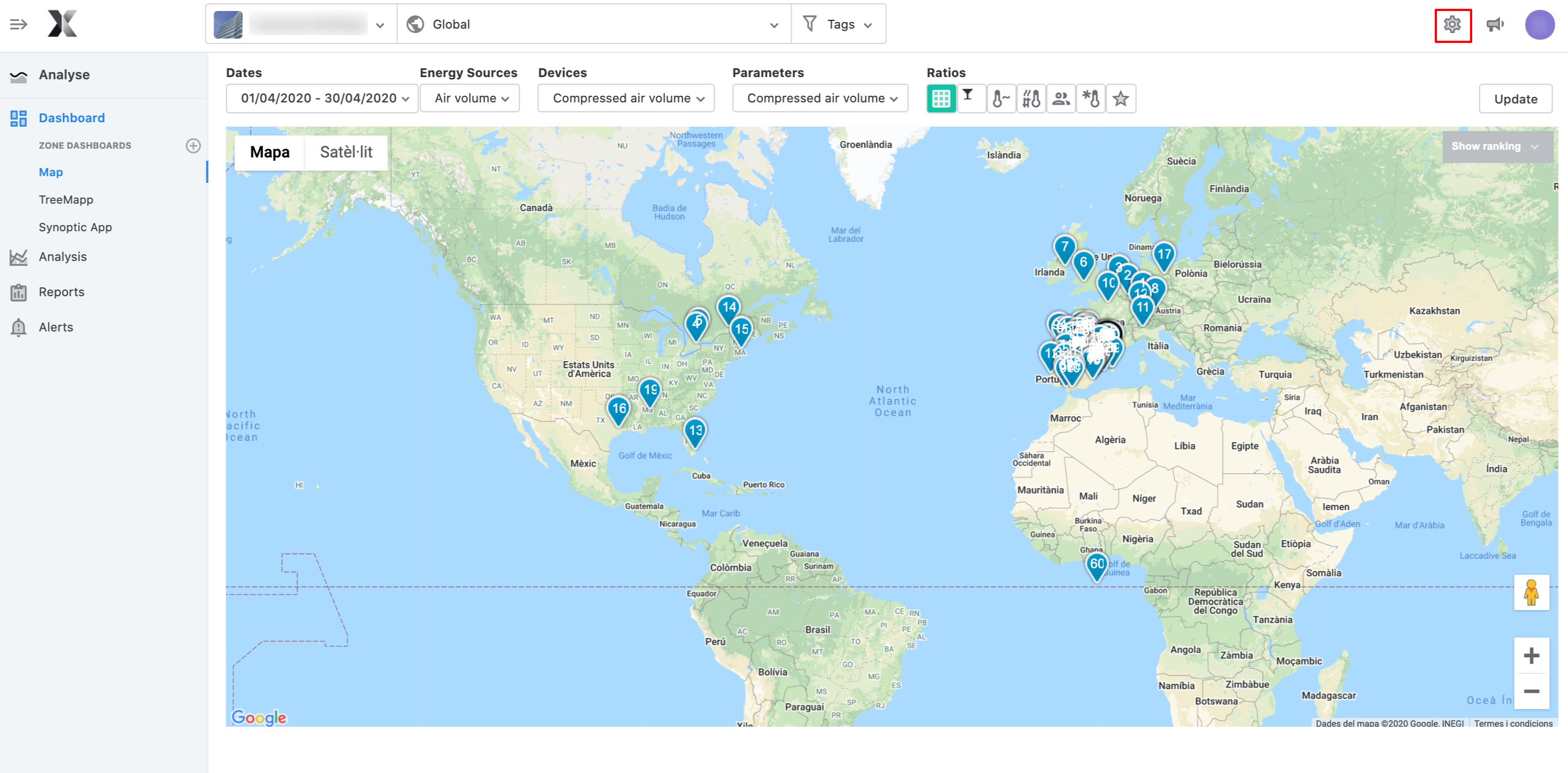

  2. Go to the Settings section:dexma-addinganAcuLink710-1.png
  3. On the left menu select Gateways and click on Register a new gateway:dexma-addingAcuLink710-2.png

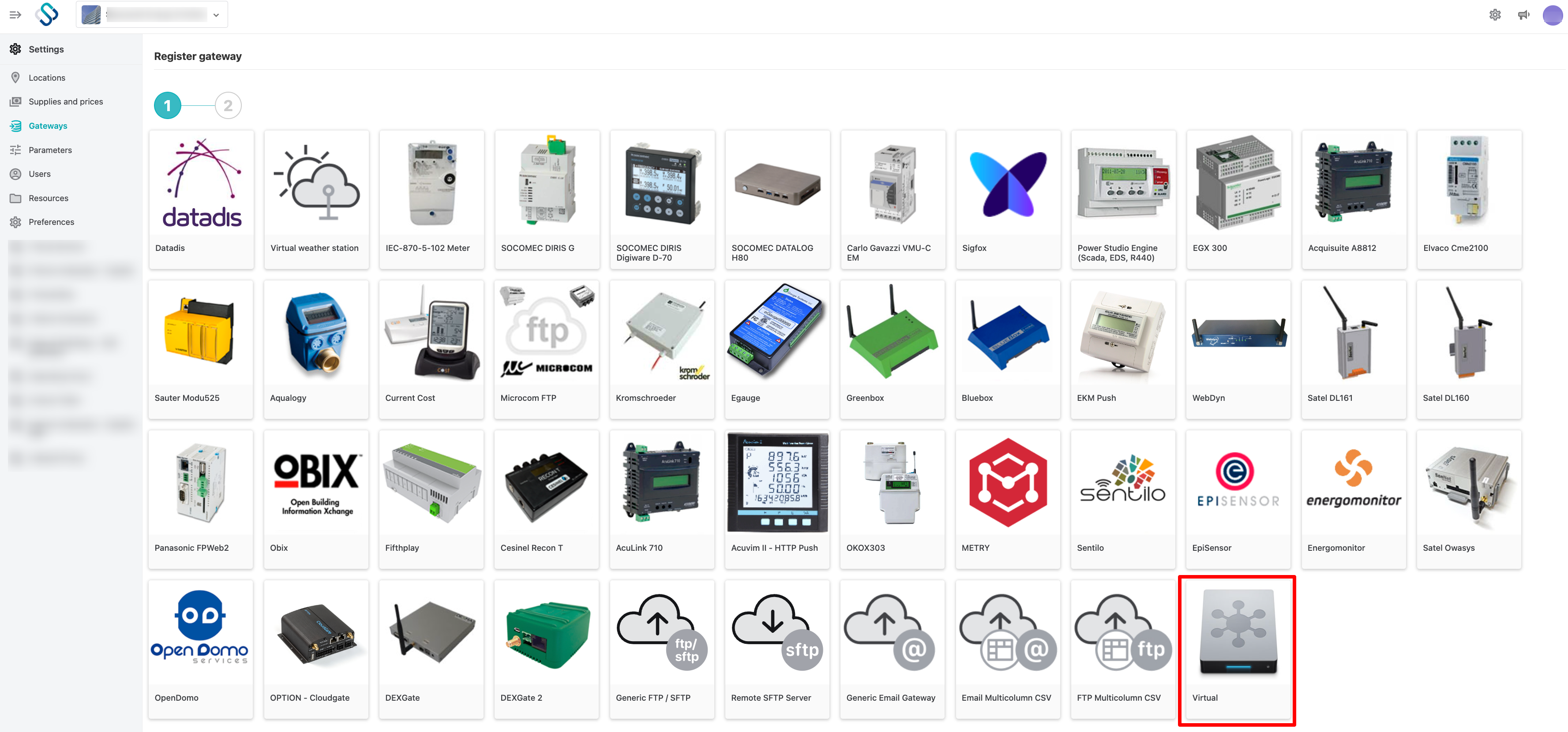

  4. Select Virtual Gateway:

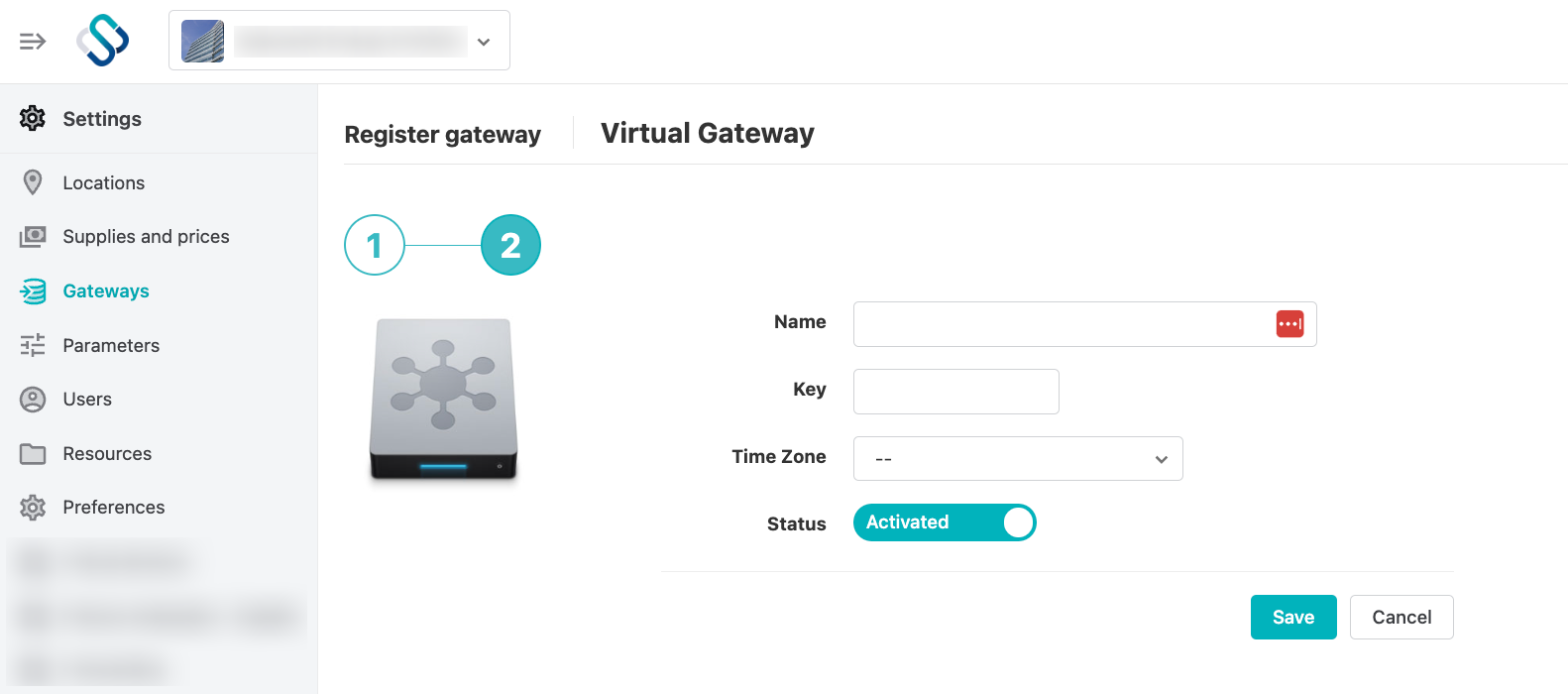

  5. Write the name, the key and the time zone of your gateway:


How to configure the IntelliSense xserver.iot.200 to start sending data to the platform

You should have the following items ready before beginning the process:

  • Energy Management Platform access
  • Install Iot Explorer from Microsoft Store or IntelliSense website (more details)
  • Install Dexma extension (DEXMAJSONInsertionAPI) to Xserver.IoT


1. Install DEXMA extension to Xserver.IoT

Installation requirements:

- Required Xserver.IoT firmware, minimum version: 11.0.34

- Required IoT Explorer, minimum version: 11.0.30

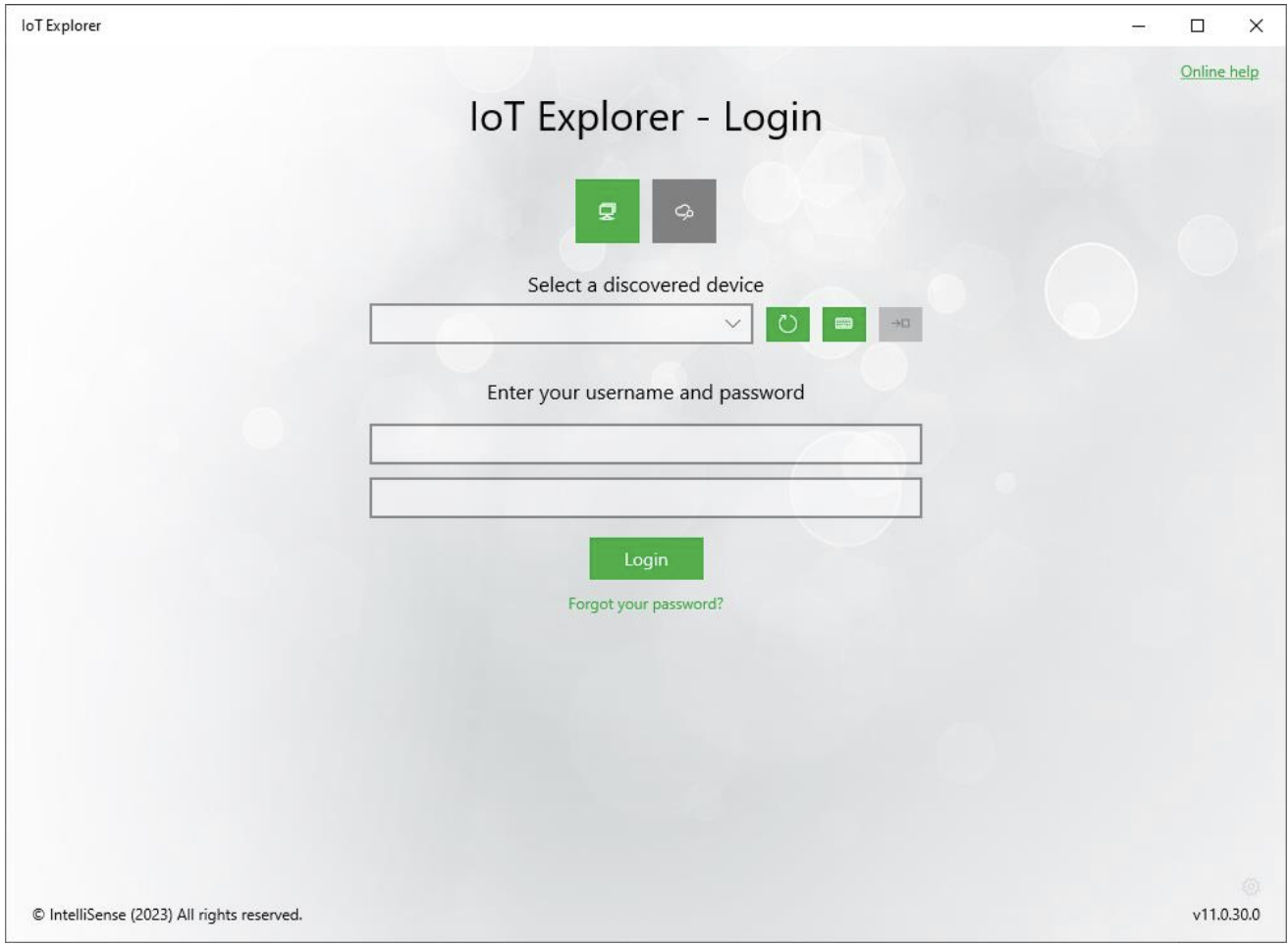

       a) Run IoT Explorer and login to the Xserver.IoT.200 with local connection (IoT Explorer automatically detects devices on the local network)

Default username and password: admin, admin

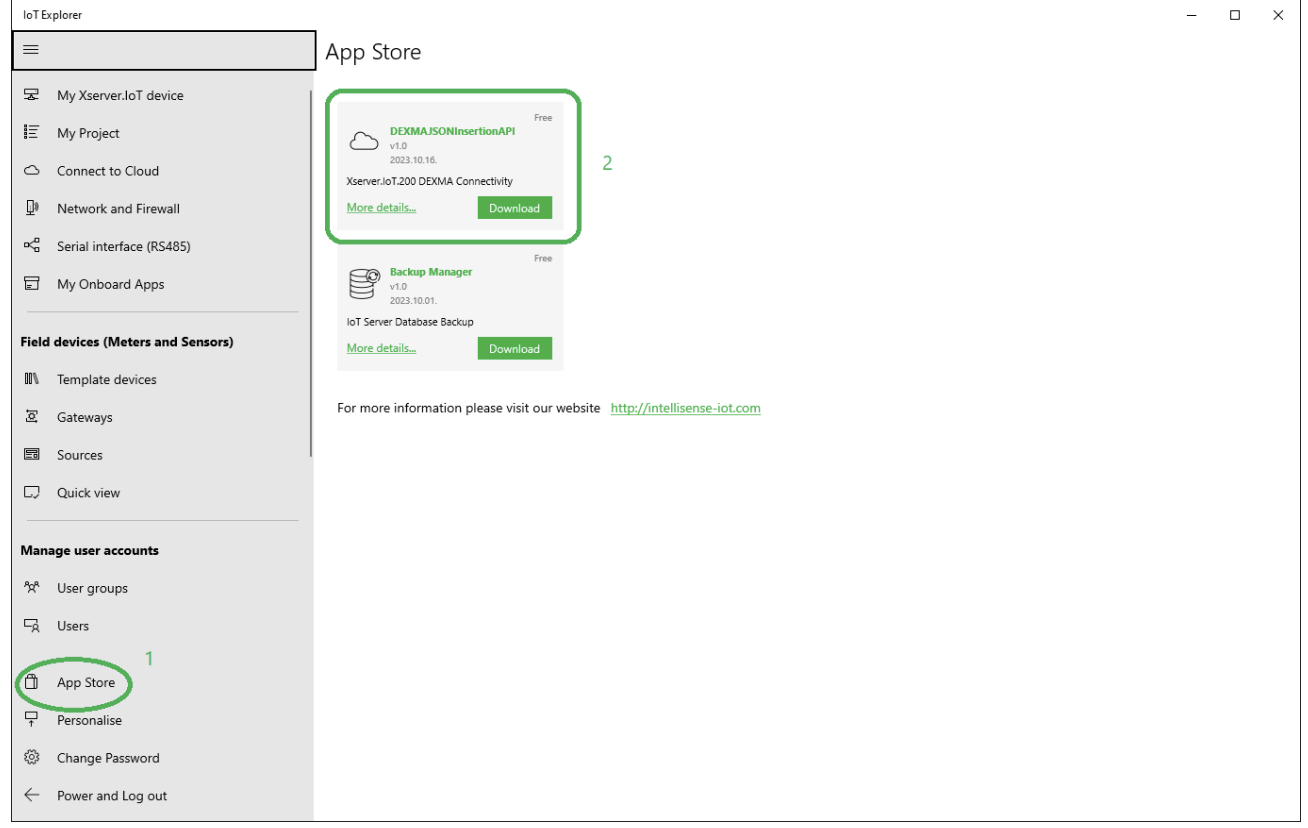

       b) Download DEXMA extension (DEXMAJSONInsertionAPI)

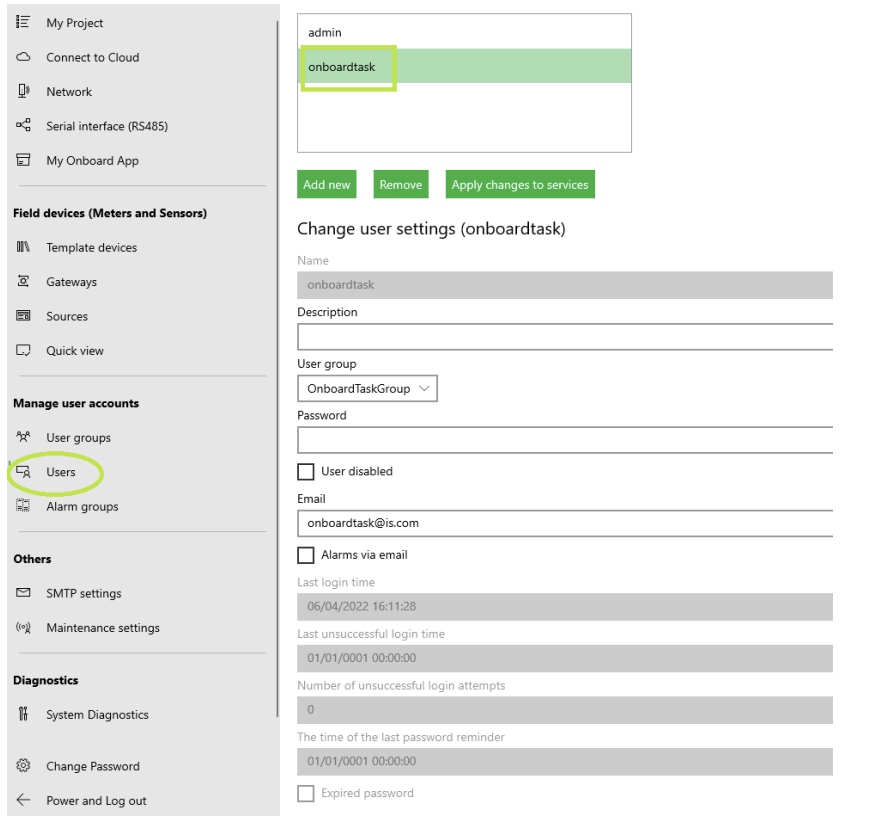

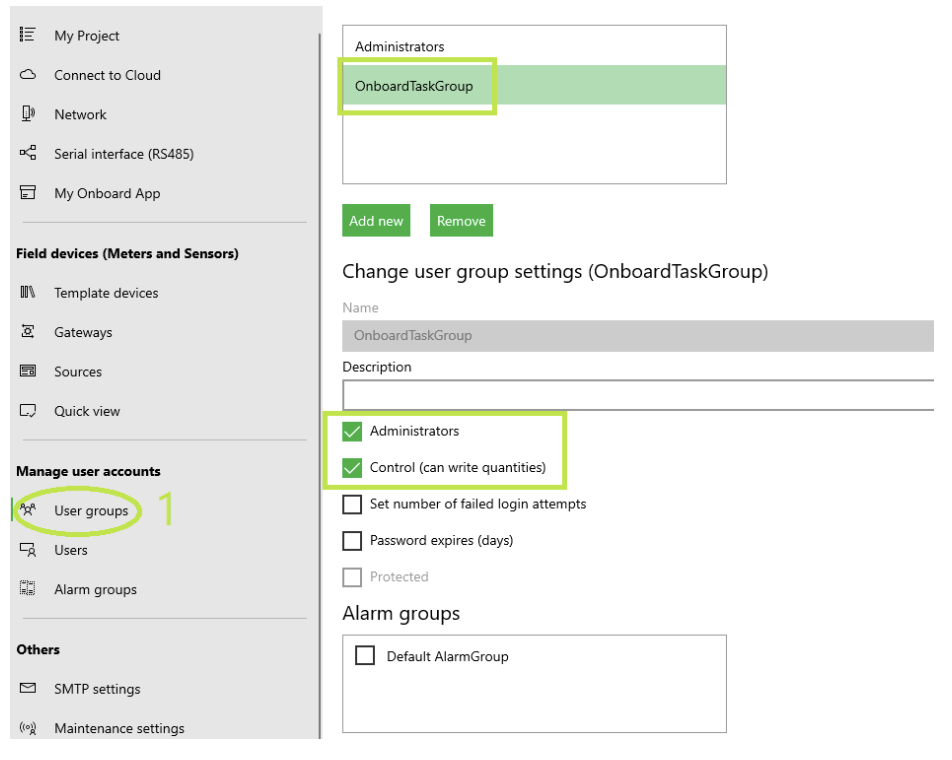

      c) Configure service access, add User group and User and assigning permissions

User name: onboardtask, Password: onboardtask

After added the user, you have to click “Apply changes to services” button.

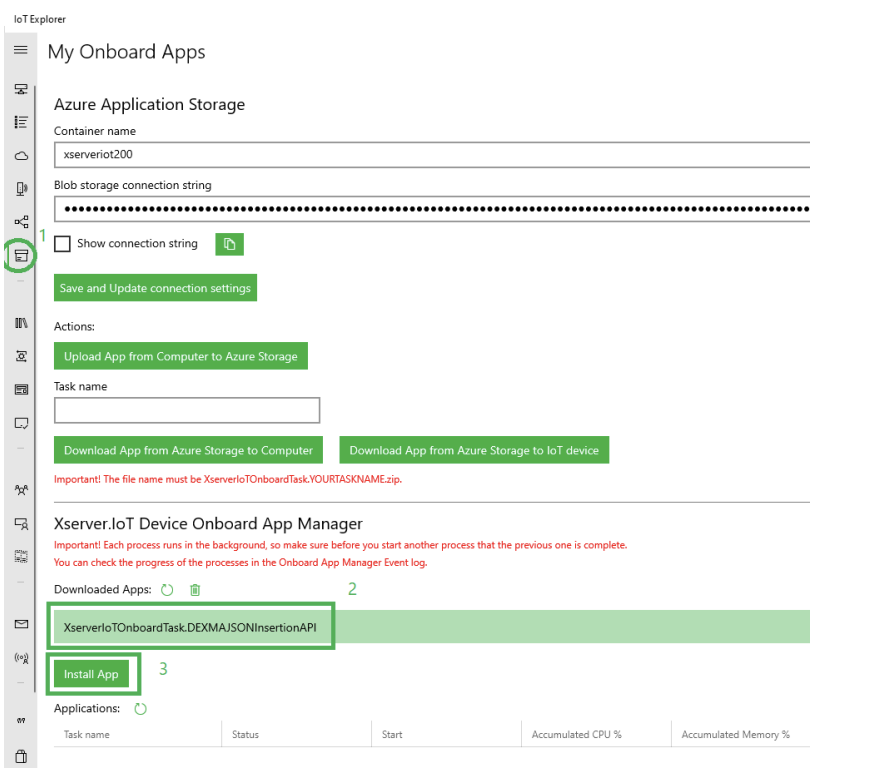

       d) Install DEXMAJSONInsertionAPI


         e) Configure connection to DEXMA EM Platform

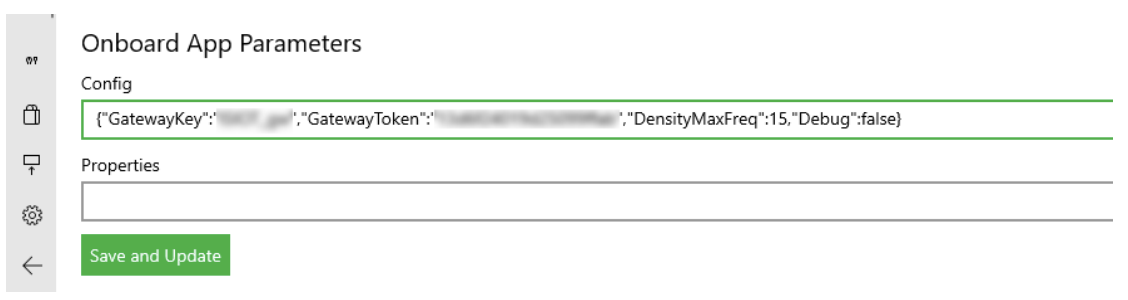

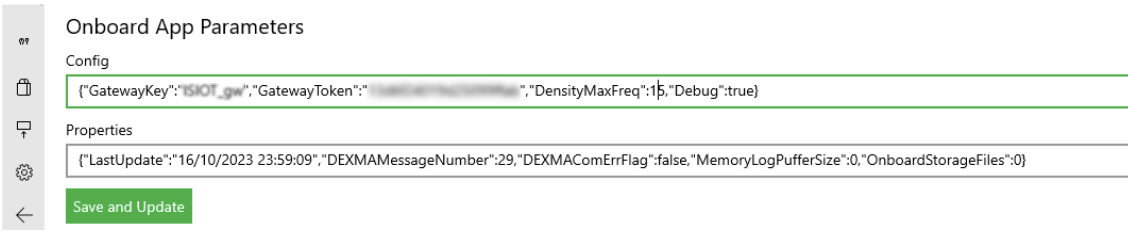

Connection string: {"GatewayKey":"xxxx","GatewayToken":"yyyyy","DensityMaxFreq":15,"Debug":false} Debug mode: If you set the Debug parameter to true, the connection information is shown in the Properties field.

NOTE: the gateway key is the one you have written when you have registered the Virtual Gateway. The Gateway token is given for the platform once you register the gateway.

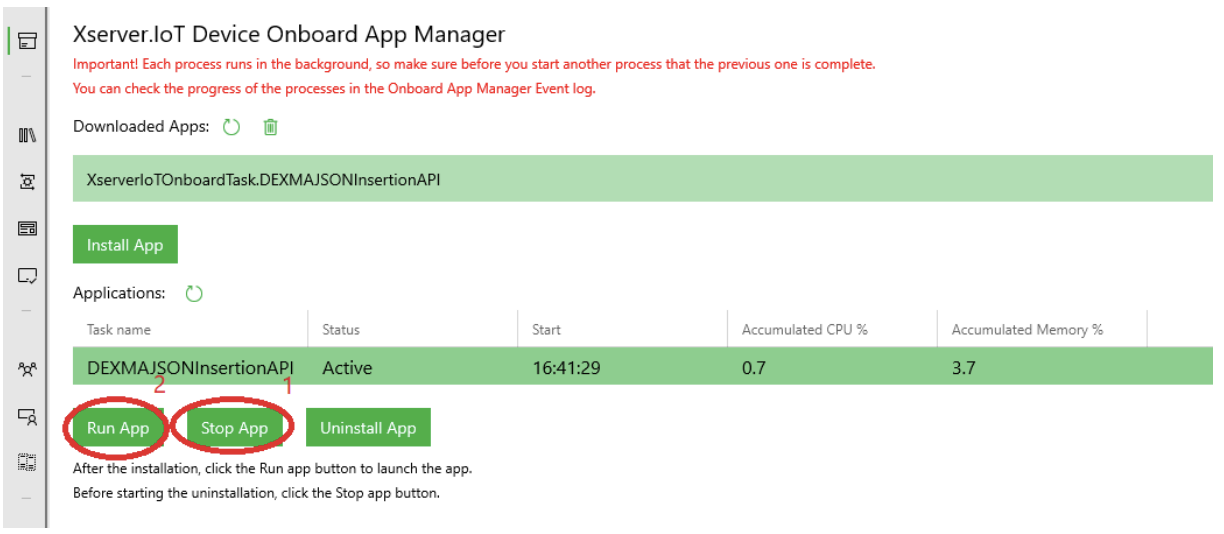

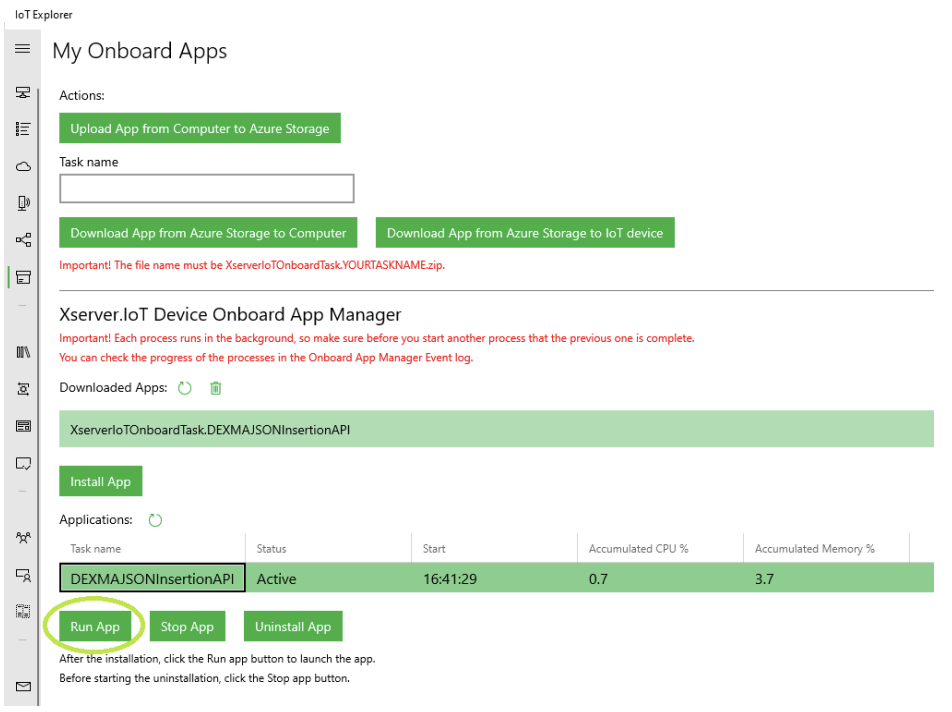

After changing the config parameter, you have to restart the service as follows:


      2. Logging energy meter(s) to the EM Platform

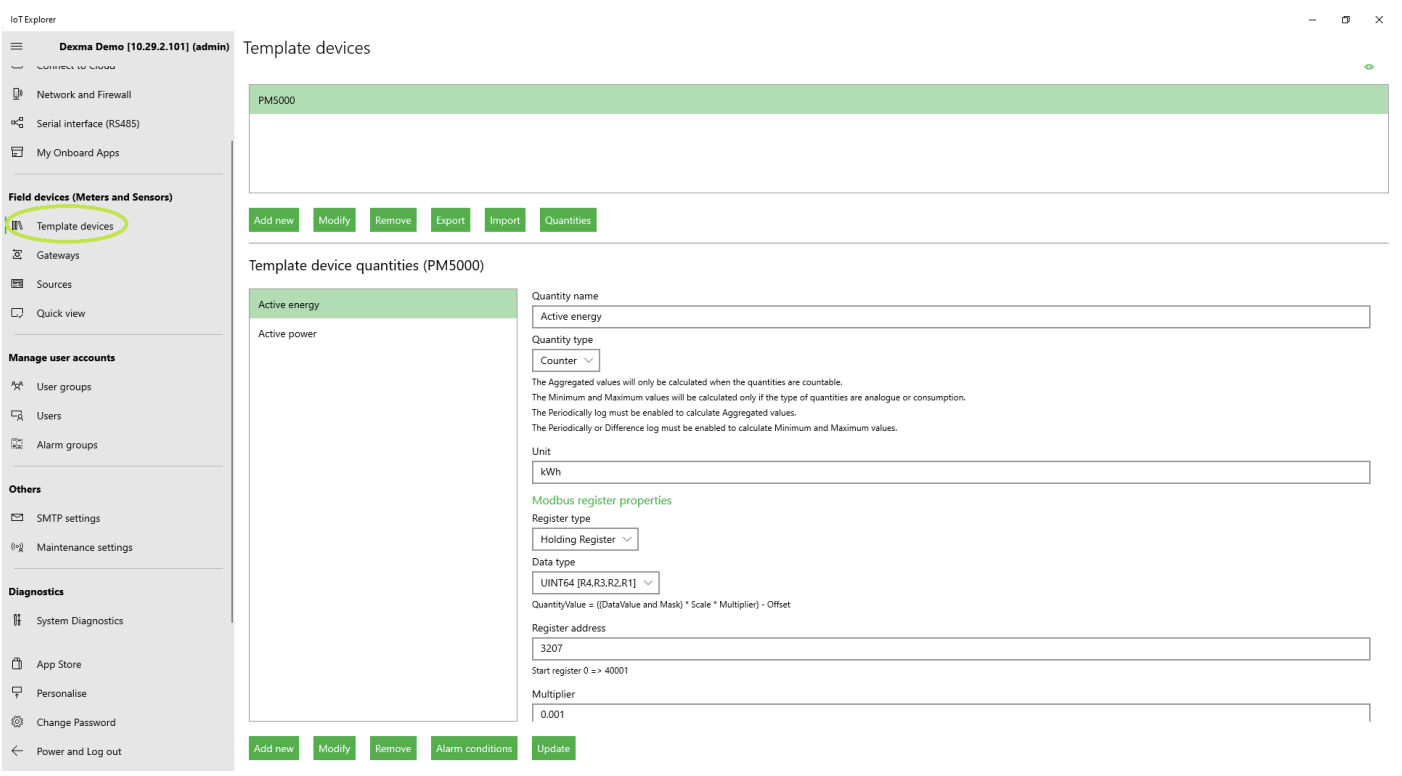

    a) Add template device(s)

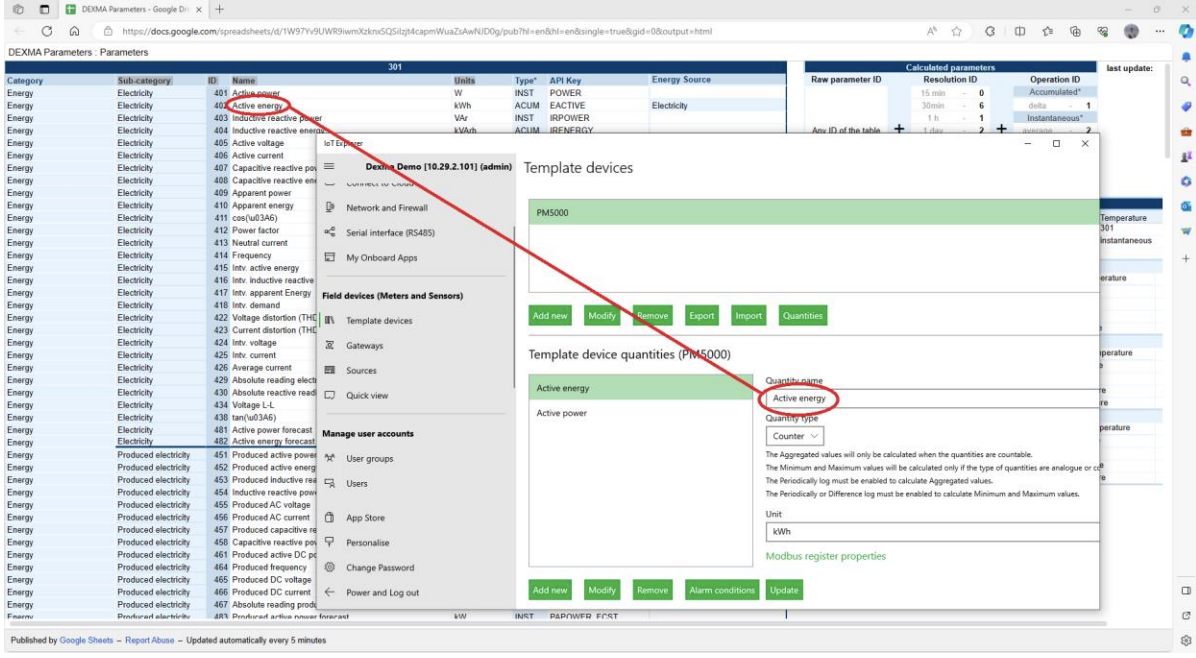

NOTE: The Quantity name must be the same as the name in the parameter list of the EM Platform (case sensitive).

More details about EM Platform Parameters

More details about Add New Parameter(s)

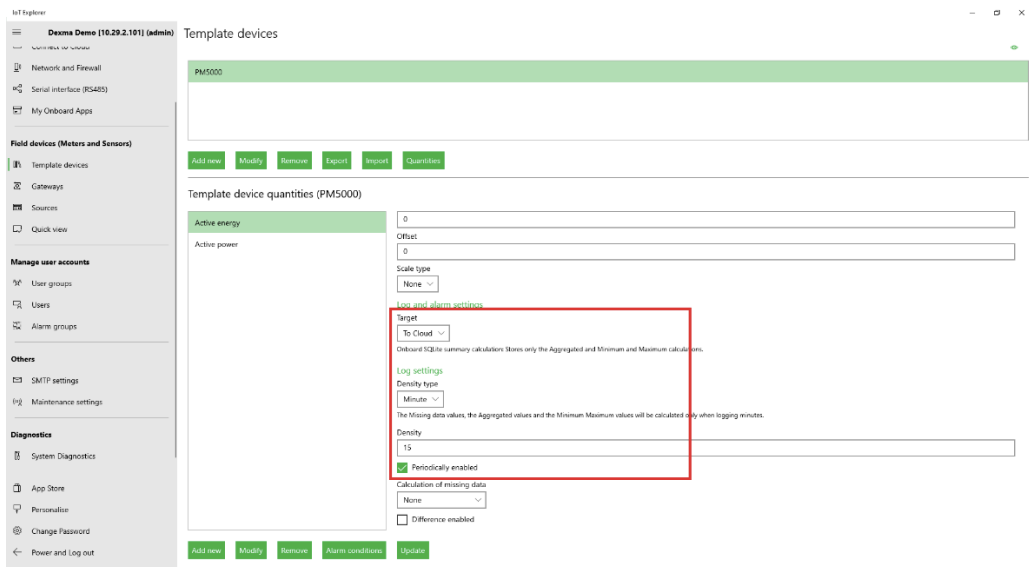

Set the quantity log settings:

NOTE: The EMS Platform supports log with a maximum data density of 15 minutes

    b) Add Source(s) and Click “Apply changes to services” button


For more information Download the User Guide attached at the end of this article.
