In this article, you will learn about the Sungrow COM100E / COM100A gateway.
- What is the Sungrow COM100E / COM100A?
- How to properly configure the Sungrow COM100E / COM100A
- How to add a Sungrow COM100E / COM100A on the Platform
What is the Sungrow COM100E / COM100A?
COM100A/COM100E is an essential device for users who want to manage a photovoltaic plant, ensuring the proper operation of the plant.
NOTE: For more information about the gateway, click here.
How to properly configure the Sungrow COM100E / COM100A
1. Connect your Sungrow COM100 data logger to your network via Ethernet cable or Wi-Fi.
2. Open the Internet browser on your computer and log in to the local user interface of the Sungrow Logger.
a. Via Ethernet-Kabel:
Enter the IP address 12.12.12.12.12 of the COM100 in the address bar of the PC to enter the general user login interface.
Click on the ‘Login’ button in the upper right corner.
Enter your password (If the password has not yet been changed, the initial password is ‘pw1111’).
b. Via Wi-Fi:
Activate the WLAN settings on the PC and search for the wireless network name of the Logger1000, e.g. ‘SG-A1234567890’ (serial number SG).
Enter the IP address 11.11.11.1 of the COM100 in the address bar of the PC to access the general user login interface.
Click on the ‘Login’ button in the upper right corner.
Enter your password (If the password has not yet been changed, the initial password is ‘pw1111’).
3. Navigate in the menu structure to System > Transfer Settings (see figure).
4. Click on ‘Third Party Portal’ and activate the FTP/SFTP switch. Then click on the ‘Advanced Settings’ configuration icon.
5. Enter the following values in the input field ‘Advanced settings’ (see figure).

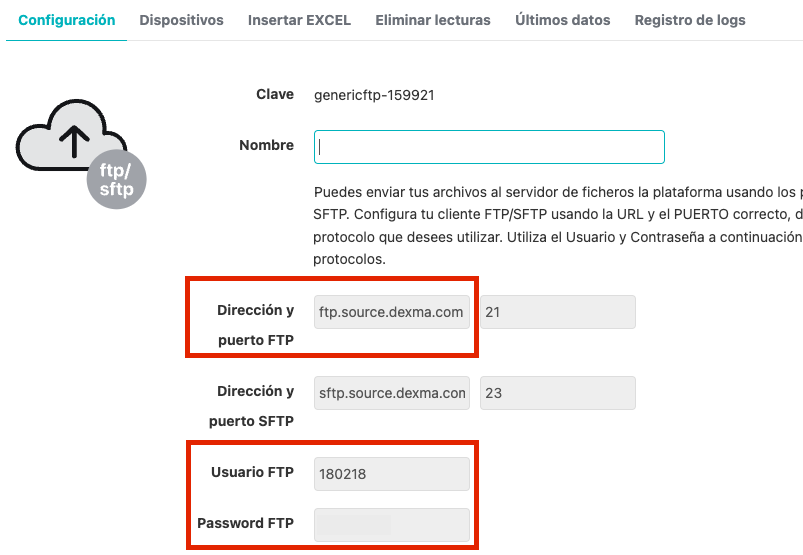

Domain: ftp.dexma.com (see image below)
Protocol type: FTP
Peer Port: 21 (see image below)
Account: login from the platform credentials (see image below)
Password: password from the platform credentials (see image below)
FTP Path: No setting necessary
Sampling cycle: 15 (if possible)
Transmission cycle: 15 (if possible)
6. Confirm the settings by clicking on ‘Save’.
How to add a Sungrow COM100E / COM100A on the Platform
Currently, the EMS platform only allows adding a Sungrow COM100 via the generic FTP gateway. Thus, the steps to follow are as follows:
1. Register a new gateway.

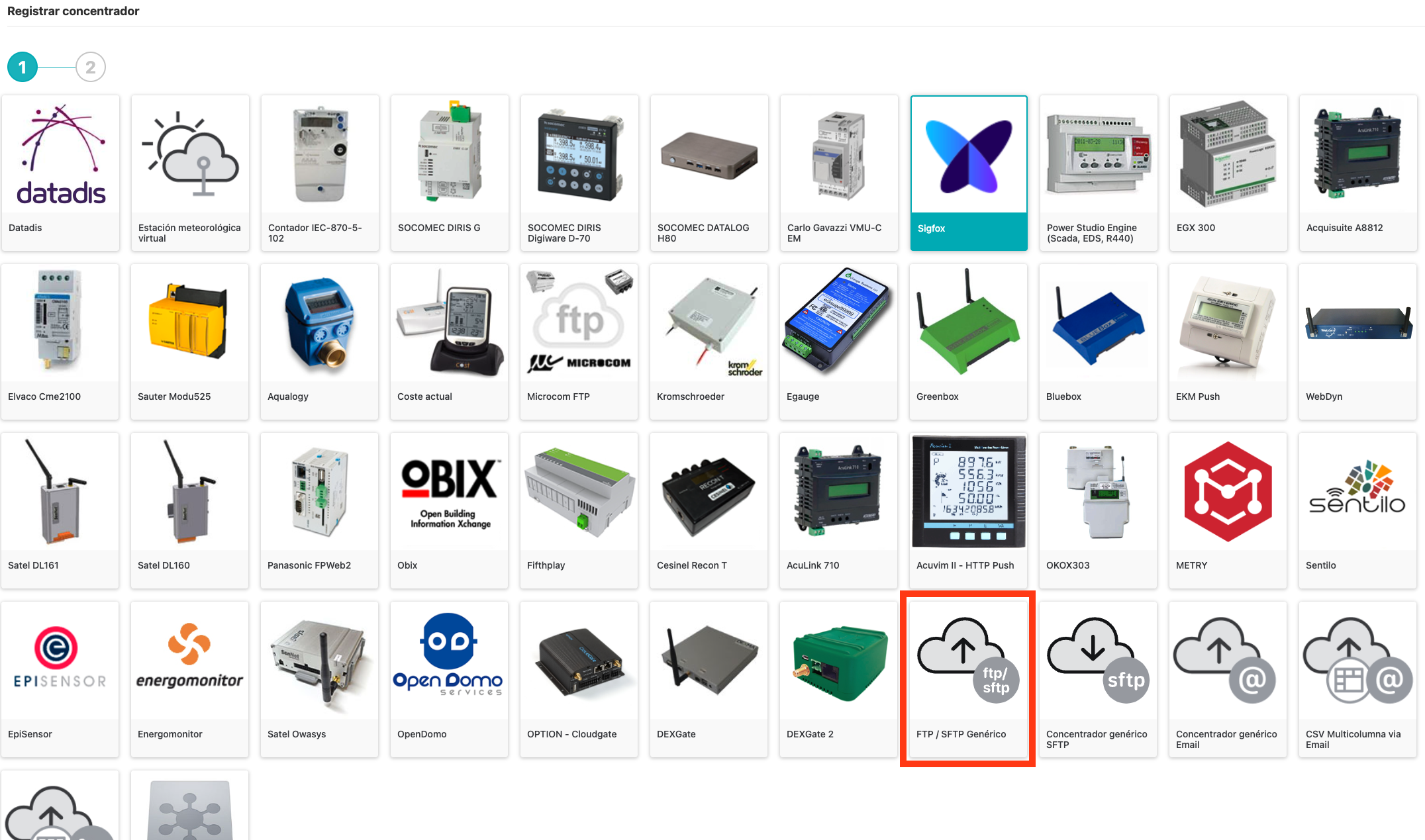

2. Select generic FTP / SFTP gateway.
3. Select the Sungrow COM100 file format.
4. Save the concentrator with the desired name, and everything will be ready for your equipment to start sending data to the platform.
Let's start enjoying your photovoltaic energy!
To be considered
- If you want to start using this parser, and you don't see it in the list of supported file formats, please contact our support team or the customer success person responsible for your account to activate it. Please note that there is a per-use fee for using this parser, so don't hesitate to ask us about it to start using it as soon as possible!
- Currently, the developed parser supports Sungrow COM100E and COM100A models; but not all parameters that both have the ability to measure are mapped to our platform. In case you install a gateway and do not receive the expected data in the account, write us to check it!
