Heatmap widget


In this article, you are going to learn how to use the Heatmap widget.

The structure of this article is:


The Heatmap is a widget that displays a distribution of values at a certain frequency and for a given period. For example, it can show the current year at a daily frequency.


The available resolutions are Hourly, Daily and Monthly, and the available periods are all the ones available in the platform: today, yesterday, last 7 days, last 28 days, ...



  • To have data available for the parameter selected
  • Note that any parameter from the platform can be selected



To set up this widget, you need to have a Dashboard created beforehand.

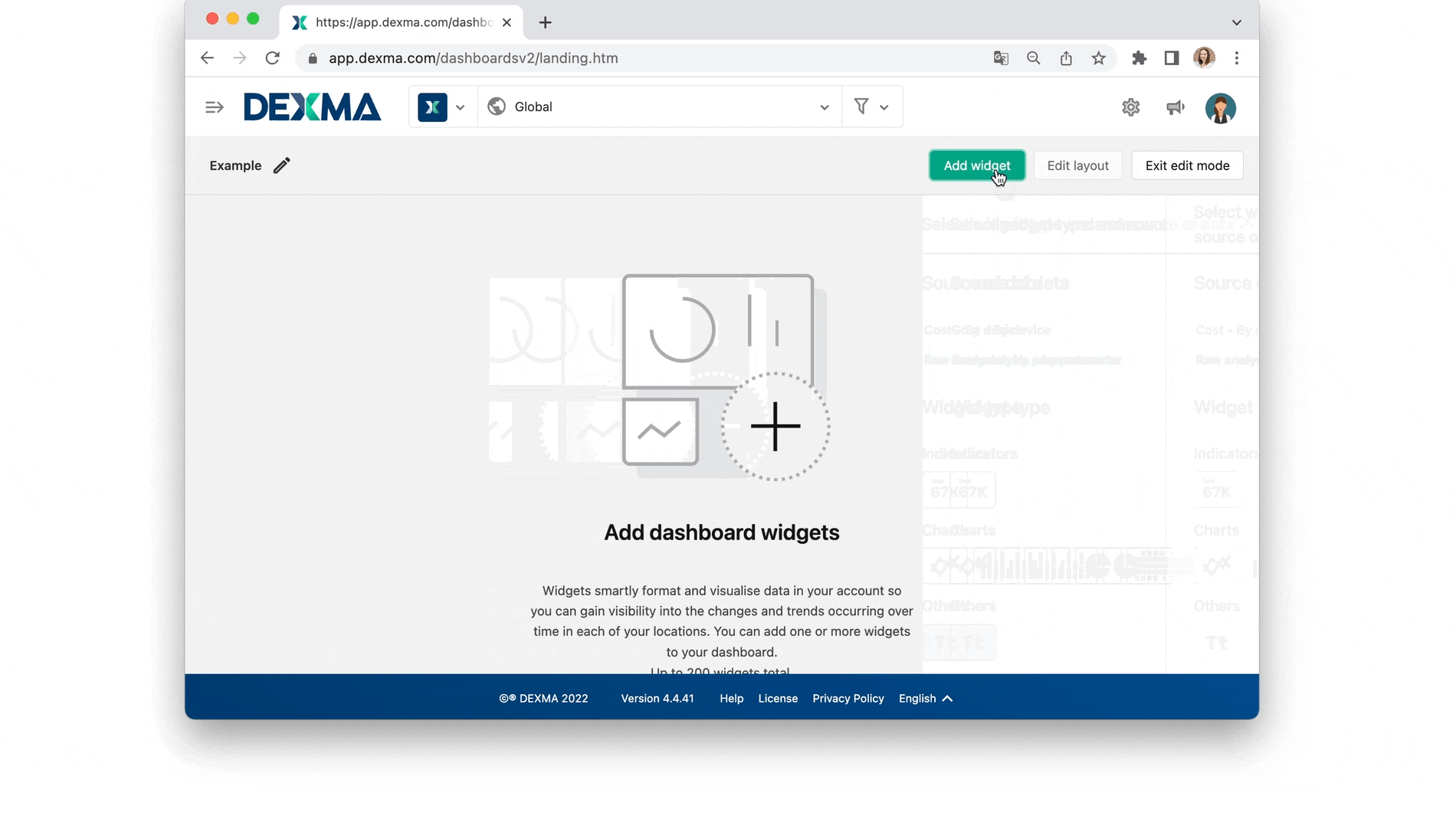

  1. Go to the dashboard and click on Edit Dashboard on the top right of the Dashboard.
  2. Click on "Add widget".
  3. Select the data source "Raw analysis - by parameter"
  4. Select the Heatmap icon in the Indicators section.
  5. Select the parameter that you want to visualise
  6. Select the device that you want to visualise the data from.
  7. Select the resolution among Hourly, Daily and Monthly
  8. Select the operation that you want to apply to the parameter.
  9. Select the period of time for which you want to visualise the data. (ie: today, last month).

Now the widget is ready, and it will be added to your Dashboard when you save it!


Widget detailing

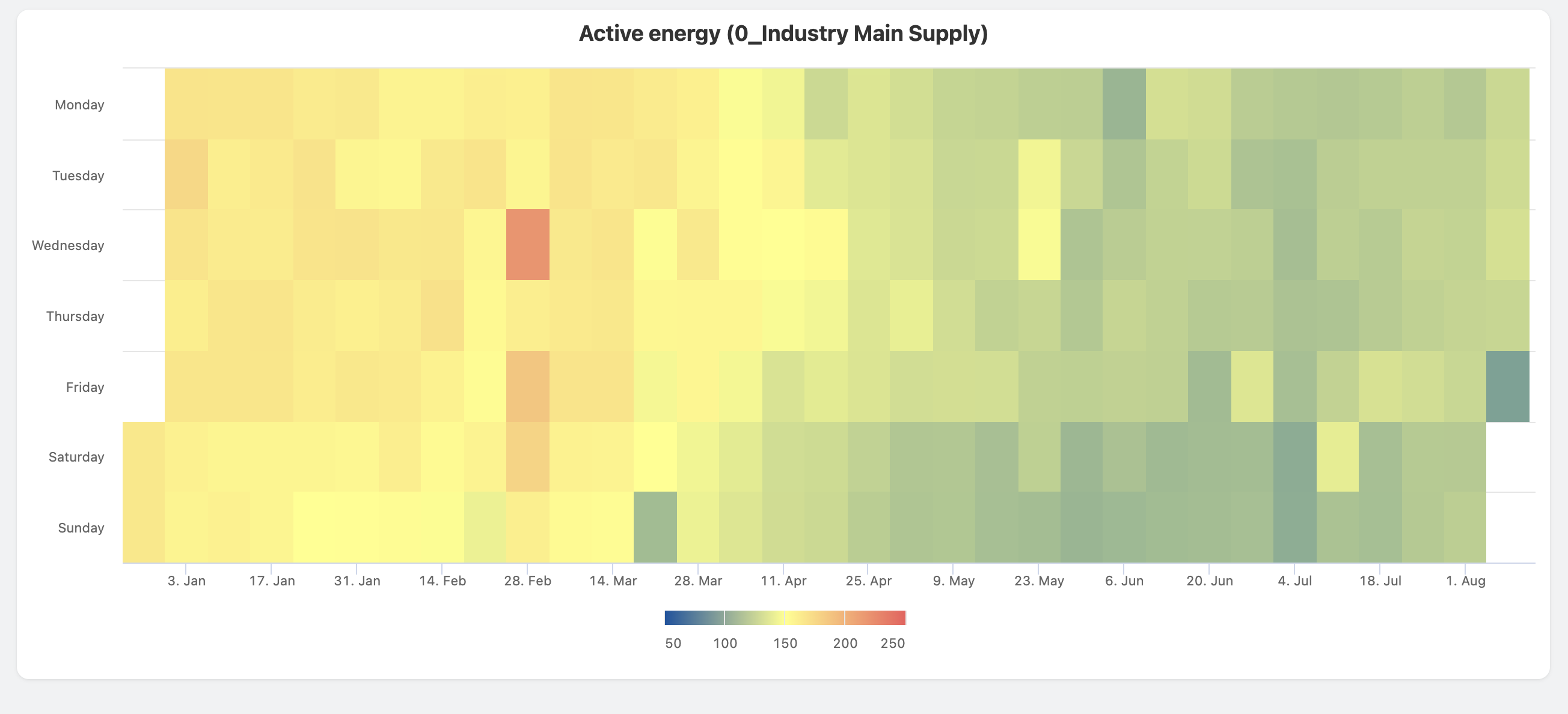

The widget shows:

  • The data of the device selected for a given period, distributed in the resolution defined
  • On the x-axis, it shows the period defined
  • On the y-axis, it shows the resolution selected
  • In a range of colours between blue and red, it shows the level of values of the given parameter (i.e: from lowest to highest consumption in the case of energy sources)
