In this article, you are going to learn how to use the Table widget.
The structure of this article is:
Introduction
The Table is a widget that displays a distribution of your portfolio values into rows and columns at a certain frequency and for a given period. For example, it can show the current year at a daily frequency.
The available resolutions are Hourly, Daily and Monthly, and the available periods are all the ones available in the platform: today, yesterday, last 7 days, last 28 days, ...
Requirements
- To have data available for the parameter selected
- Note that any parameter from the platform can be selected
Setup
To set up this widget, you need to have a Dashboard created beforehand.

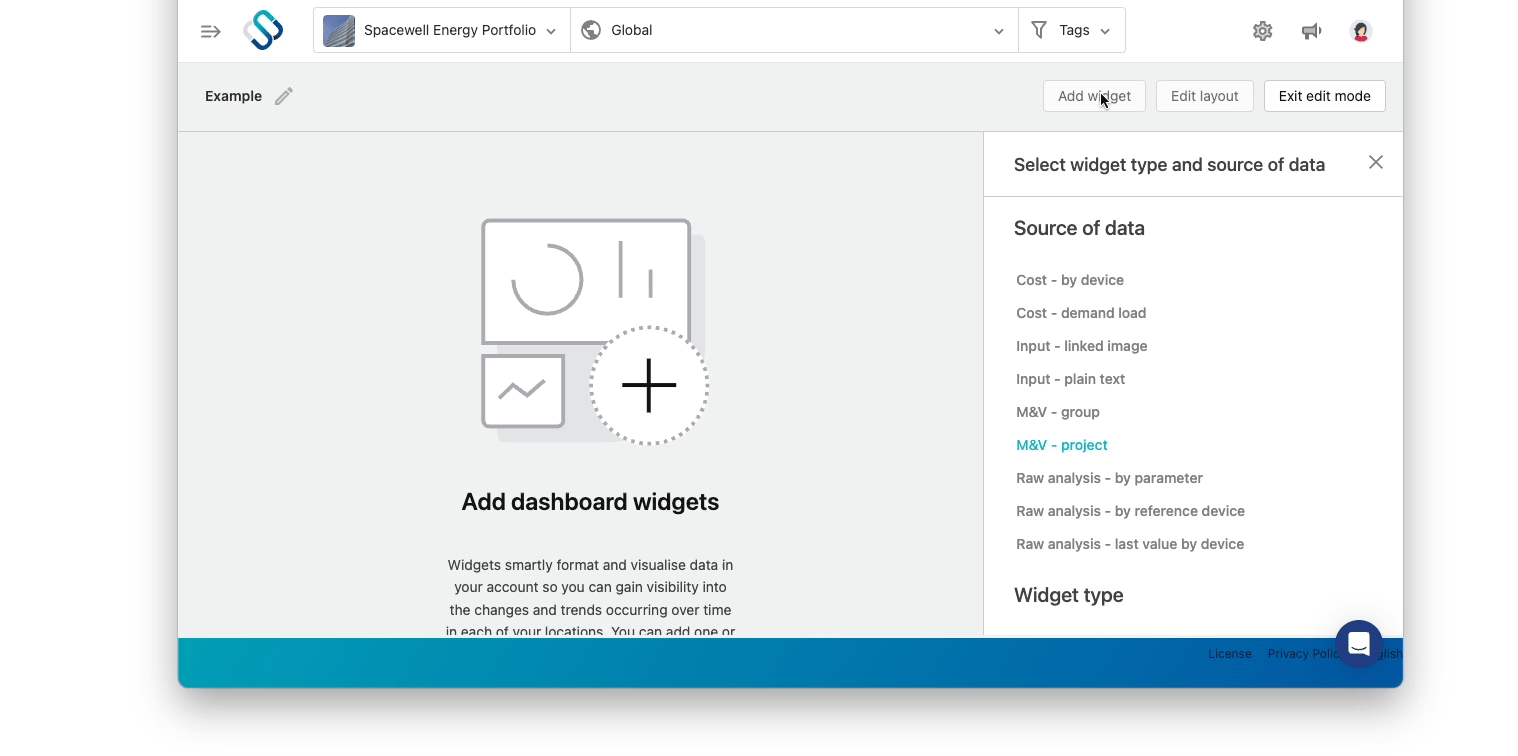

- Go to the dashboard and click on Edit Dashboard on the top right of the Dashboard.
- Click on "Add widget".
- Select the data source "Raw analysis - by parameter"
- Select the Table icon in the Tabular section.
- Select the parameter that you want to visualise.
- Select the device or devices* that you want to visualise the data from.
- Select the resolution among Hourly, Daily and Monthly
- Select the operation that you want to apply to the parameter.
- Select the period of time for which you want to visualise the data. (ie: today, last month).
You can also select the comparison feature. (ie: previous period, same period last year).
Now the widget is ready, and it will be added to your Dashboard when you save it!
* Please note that you can select up to a maximum of 20 devices at the moment. We are working on increasing this aggregation very soon.
Widget detailing

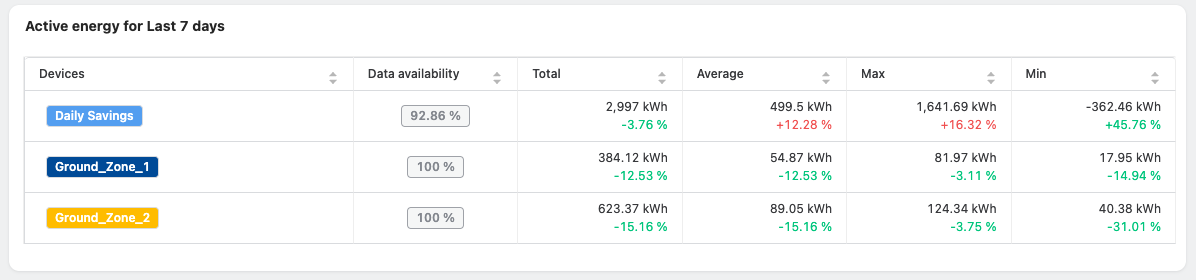

The widget shows:
- Data Availability percentage of the data inserted in the platform for the selected device in the resolution defined.
- Total consumption for the selected device in the resolution defined.
- Average consumption for the selected device in the resolution defined.
- Max consumption for the selected device in the resolution defined.
- Min consumption for the selected device in the resolution defined.
Note: In case you have selected the Comparison option, you will also visualise the percentage increase or decrease for each device.
